McDonnell Douglas MD-80

Image of - McDonnell Douglas MD-80

The MD-80 was lengthened and updated from the DC-9 and was first introduced into commercial service on October 10, 1980 by Swissair. The development of the MD-80 series began in the 1970s as a lengthened, growth version of the DC-9-50 with a higher maximum take-off weight (MTOW) and a higher fuel capacity. The MD-80 is a mid-size, medium-range airliner. McDonnell Douglas built 779 MD-80s during the 20-year production run.

Everts Air Cargo was the launch customer for the first freighter conversion of an MD-80, receiving the first conversion in the spring of 2013. The conversion was done from Miami, Florida-based Aeronautical Engineers (AEI).

In the fall of 2019, Everts Air Cargo received the certification from the FAA for an MD-80 simulator located in Fairbanks, AK. Read more here.

Cargo Capacity

Average Useful Capacity4,600 cu ft
Average Payload43,000 lbs
Minimum Runway Length5,900 ft

Cargo Door Dimensions

Main133"W X 75"H

Cargo Capacity

Average Useful Capacity4,600 cu ft
Crew2
Propulsion2 Turbofan Engines
Engine ModelPratt & Whitney
JT8D-219
Engine Power (each)21000 lbf
Speed445 kts
Service Ceiling35,000 ft
Range2.050 nm
Empty Weight76,452 lbs
Max. Takeoff Weight149,500 lbs
Max. Landing Weight130,000 lbs
Wing Span107.10 ft
Length147.11 ft
Height29.7 ft
First Flight08.01.1981
Production StatusOut of production

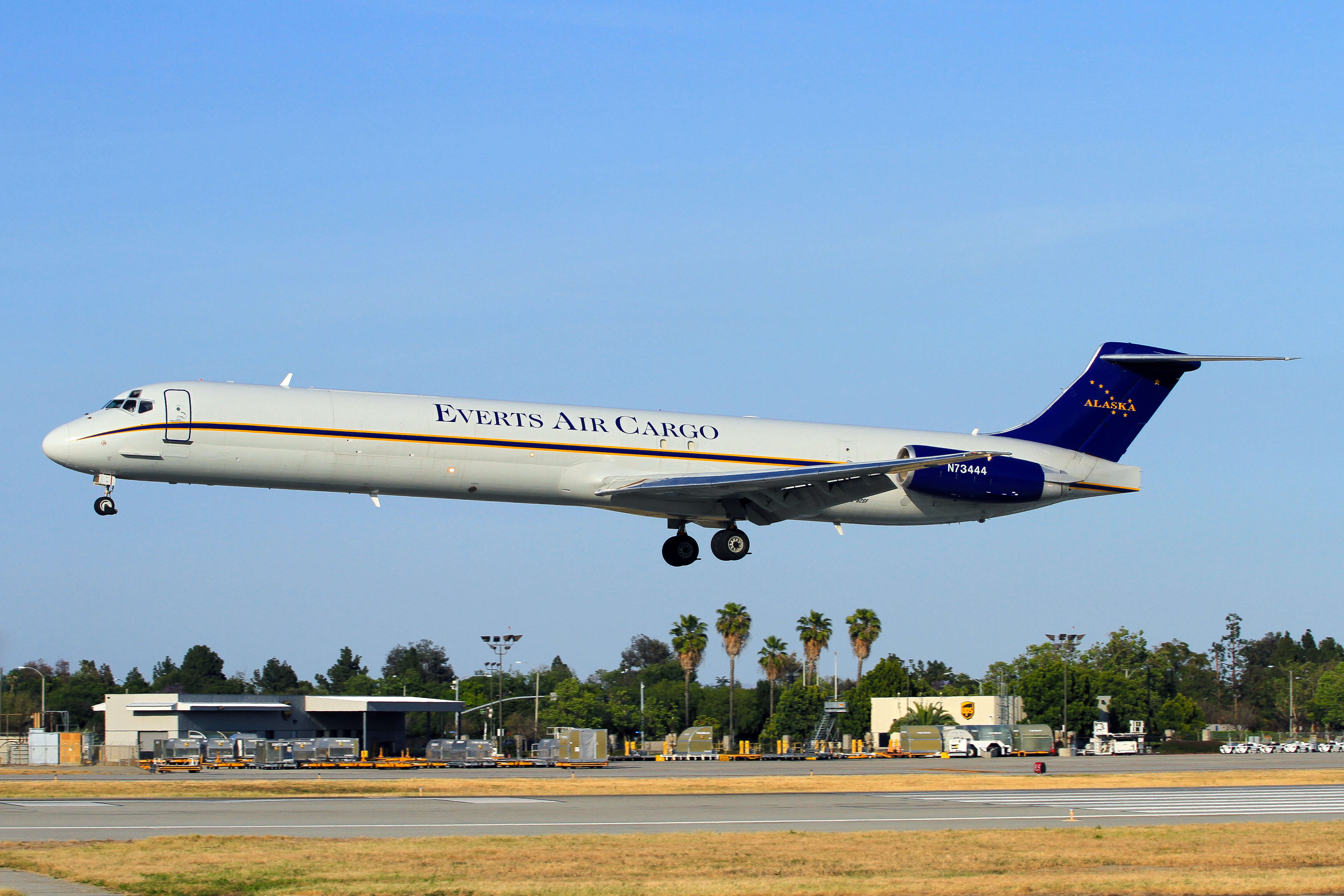

Karen Wing - Derin Allard_Everts Air Cargo DC-9-82F N73444 (96)(Ldg) LGB (DAD)(46) (1)

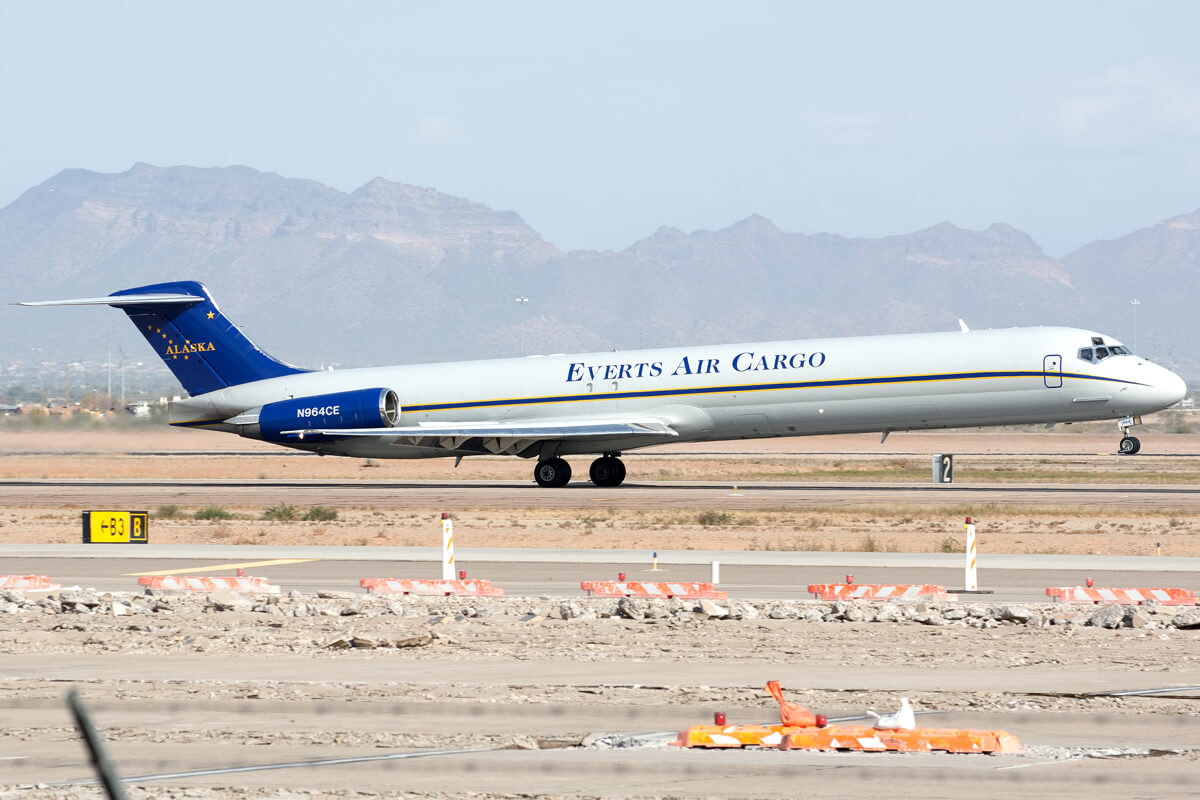

Karen Wing - Kory Crohn_N964CE (1)
